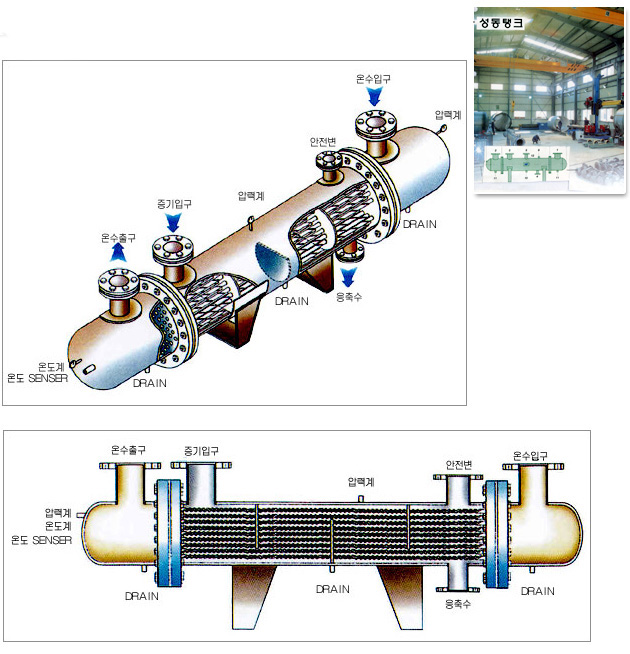

열교환기
| 용량 |
형식 |
규격 |
튜브길이 |
전열면적 |
스팀소비량 |
온수순환량 |
| Capacity |
Model |
외장*전장 |
| Kcal/Hr |
1Pass |
mmΦ*mm |
mm |
㎡ |
kg/Hr |
1.min |
| 100,000 |
JIPHS-1010SW-11 |
114.3*1450 |
1,000 |
0.8 |
180 |
166 |
| 200,000 |
JIPHS-1507SW-11 |
165.2*1220 |
700 |
1.26 |
360 |
332 |
| 300,000 |
JIPHS-2007SW-11 |
216.3*1300 |
1,000 |
2.37 |
540 |
498 |
| 500,000 |
JIPHS-2507SW-11 |
267.4*1470 |
700 |
3.63 |
900 |
833 |
| 600,000 |
JIPHS-2507SW-11 |
267.4*1470 |
1,000 |
3.63 |
1080 |
1000 |
| 700,000 |
JIPHS-2510SW-11 |
267.4*1470 |
1,000 |
5.19 |
1260 |
1166 |
| 800,000 |
JIPHS-2510SW-11 |
267.4*1470 |
1,000 |
5.19 |
1440 |
1333 |
| 900,000 |
JIPHS-2510SW-11 |
267.4*1470 |
1,000 |
6.85 |
1740 |
1529 |
| 1,000,000 |
JIPHS-3010SW-11 |
318.5*1860 |
1,000 |
7.18 |
1800 |
1660 |
| 1,200,000 |
JIPHS-3010SW-11 |
318.5*1860 |
1,000 |
9.13 |
2320 |
2039 |
| 1,500,000 |
JIPHS-3510SW-11 |
355.6*1960 |
1,000 |
9.77 |
2700 |
2502 |
| 2,800,000 |
JIPHS-4010SW-11 |
406*4*1980 |
1,000 |
13.70 |
3490 |
3039 |
| 2,000,000 |
JIPHS-4010SW-11 |
406*4*1980 |
1,000 |
14.12 |
3600 |
3333 |
| 2,200,000 |
JIPHS-4010SW-11 |
441.4*2200 |
1,000 |
16.74 |
4250 |
3739 |
| 2,500,000 |
JIPHS-4510SW-11 |
441.4*2200 |
1,200 |
19.02 |
4830 |
4249 |
| 2,700,000 |
JIPHS-4510SW-11 |
441.4*2200 |
1,200 |
20.55 |
5220 |
4589 |
| 3,000,000 |
JIPHS-5010SW-11 |
492.2*2200 |
1,200 |
22.83 |
5800 |
5099 |
